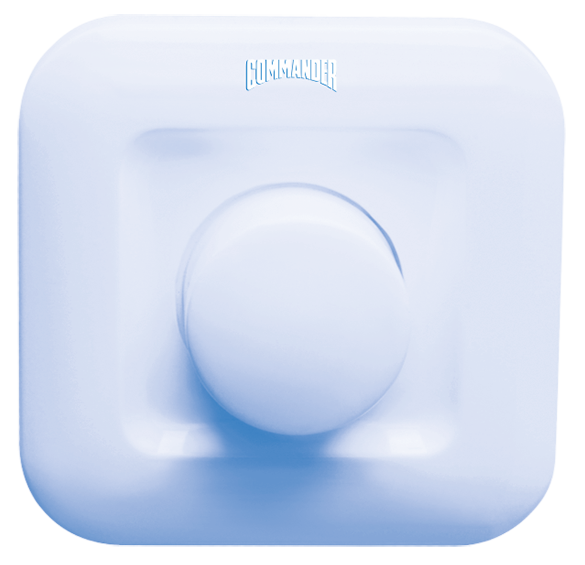

Slimhide PSF Square Actuator

All you see is the Actuator


  • All components are in ABS, Acetal, EVA, EPDM, Nylon, PP and other high quality non corrosive materials
  • Inlet valve manufactured to sustain pressure of 15kg/cm2
  • Uses standard 1/2" pipe with 1/2 bar to 10 bar head. Does not need 1 3/4" pipes with 15' head or pressure lines
  • All parts are standardized and replaceable
  • 9 litres water capacity
  • Silent operation
  • Mosquito proof cistern has a lip and an integral lock to ensure no mosquito enters the cistern
  • 5 Years warranty with free installation guidance

The Commander Slimhide Pneumatic actuates a cistern upto a distance of 10 feet. It is tested for 50,000 cycles.

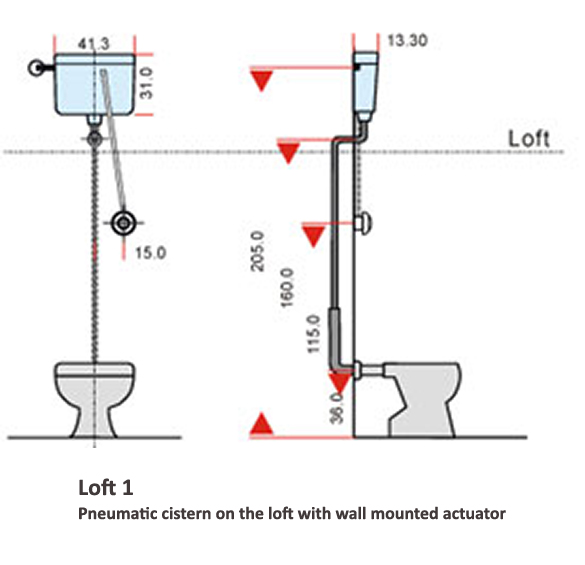

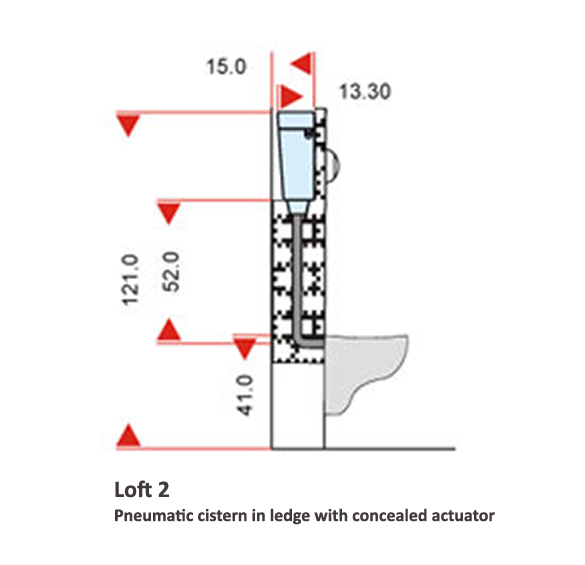

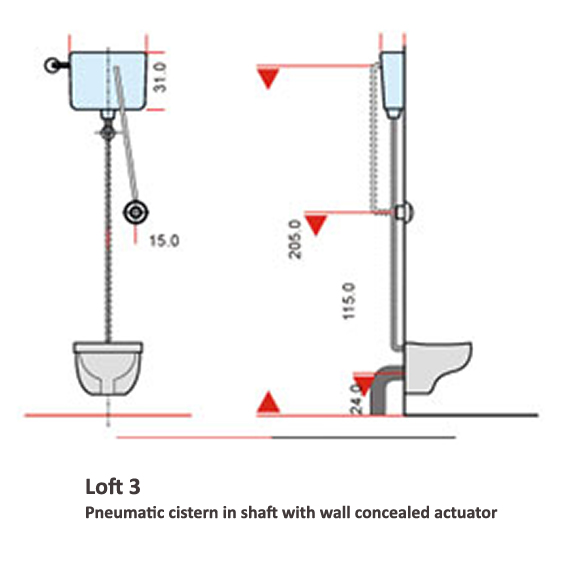

Applications of the Commander Pneumatic Actuator (All dimensions are in cms.)
